TOYOTA 7702035170, 77020-35170, 7702035171, 77020-35171 Electric Fuel Pump Assembly

TOYOTA 7702035170, 77020-35170, 7702035171, 77020-35171 Electric Fuel Pump Assembly

TOYOTA 7702035170, 77020-35170, 7702035171, 77020-35171 Electric Fuel Pump Assembly

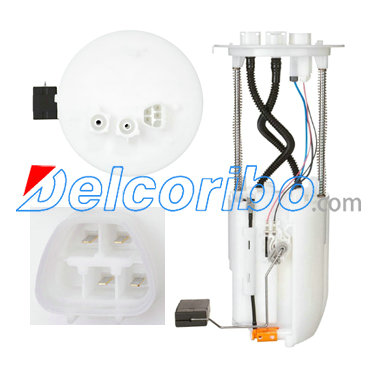

FPM2075 TOYOTA Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 13.8
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 51
Resistance Empty (Ohms): 410
Resistance Full (Ohms): 15
Rheostat Range (Ohms): 410-15
Inlet Quantity: 1
Inlet Type: Push In
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Push In
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 41.7
Min Pressure Range (Psi): 73
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
7702035170, 7702035171,
SPECTRA PREMIUM SP9180M
AIRTEX E9067M
TOYOTA FJ CRUISER 2010-2014
