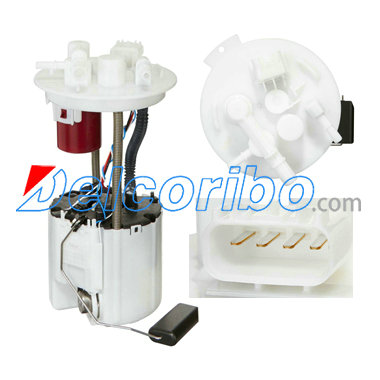

CADILLAC 13578102, 13580932, 13583979, 13584321, 13584323, 13594163, 13595835, 13595836 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet
Vapor Pressure Sensor Yes
Fuel Level Sender Assembly Included Yes
System Pressure 55 psi
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

13578102, 13580932, 13583979, 13584321, 13584323, 13594163, 13595835, 13595836,

AIRTEX E4055M
DELPHI FG1869

CADILLAC ELR 2014-2016
CHEVROLET VOLT 2011-2015
