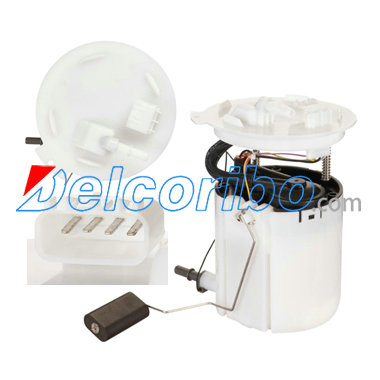

CADILLAC 13577820, 13585455, 13594059, 19209054, 19256582 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 8.6
Max Pressure Range (Psi) 87
Max Free Flow (Gph) 59
Resistance Empty (Ohms) 250
Resistance Full (Ohms) 40
Rheostat Range (Ohms) 250-40
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Flex / Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 50
Min Pressure Range (Psi) 81
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

13577820, 13585455, 13594059, 19209054, 19256582,

SPECTRA PREMIUM SP6678M
AIRTEX E4080M

CADILLAC CTS 2010-2013
