Fuel System
>
Electric Fuel Pump Assembly
>
SMART 4514700294, 451-470-02-94 Electric Fuel Pump Assembly

SMART 4514700294, 451-470-02-94 Electric Fuel Pump Assembly

SMART 4514700294, 451-470-02-94 Electric Fuel Pump Assembly

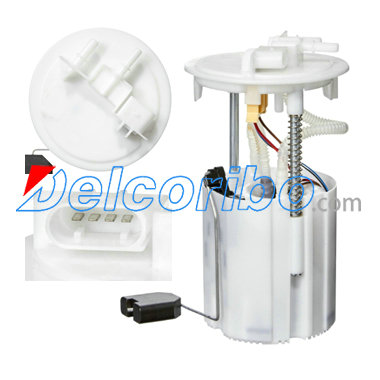

FPM2122 SMART Electric Fuel Pump Assembly
Description Fuel Pump Module Assembly
Gaskets Included No
Height (in) 9.5
Max Pressure Range (Psi) 50
Max Free Flow (Gph) 55
Resistance Empty (Ohms) 750
Resistance Full (Ohms) 112
Rheostat Range (Ohms) 738-111
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 5/16
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 45
Min Pressure Range (Psi) 40
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
4514700294,
SPECTRA PREMIUM SP5129M
AIRTEX E9149M
DELPHI FG1883
SMART FORTWO 2008-2015
