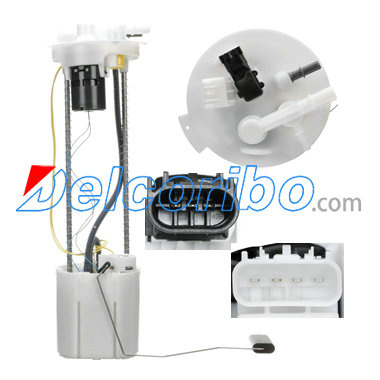

DELPHI FG2309, CHEVROLET 84174271, 84200593 Electric Fuel Pump Assembly

Fuel Level Sender Assembly Included Yes
Fuel Type Flex
Vapor Pressure Sensor Yes
System Pressure 80 psi
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Regulator Included Yes
Maximum Pressure (PS) 87.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Average Flow Rating (GP) 29
Pump Type Electric

84174271, 84200593,

DELPHI FG2309

CHEVROLET SILVERADO 2500 2017-2018
CHEVROLET SILVERADO 3500 2017-2018
GMC SIERRA 2500 2017-2018
GMC SIERRA 3500 2017-2018
