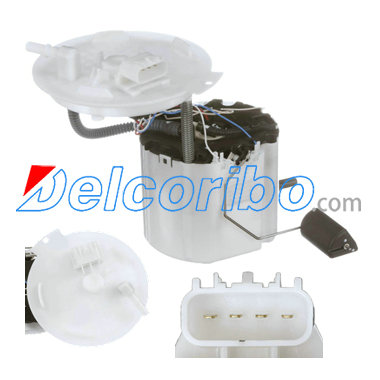

CADILLAC 13510071, 13511524, 13590028, 19352509 Electric Fuel Pump Assembly

Fuel Level Sender Assembly Included Yes
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Vapor Pressure Sensor No
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

13510071, 13511524, 13590028, 19352509,

DELPHI FG2243
ACDELCO M100195
ACDELCO MU2301

CADILLAC CT6 2016-2018
