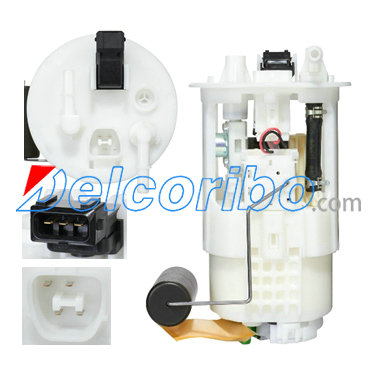

MITSUBISHI 1760A029, 1760A058, 1760A097, MR968070, SP4154M Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 8.5
Max Pressure Range (Psi) 90
Max Free Flow (Gph) 50
Resistance Empty (Ohms) 60
Resistance Full (Ohms) 6
Rheostat Range (Ohms) 60-6
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 3/8
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 40
Min Pressure Range (Psi) 70
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Trapeze
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

1760A029, 1760A058, 1760A097, MR968070, SP4154M,

SPECTRA PREMIUM SP4155M
DELPHI FG2210

MITSUBISHI OUTLANDER 2005-2006
