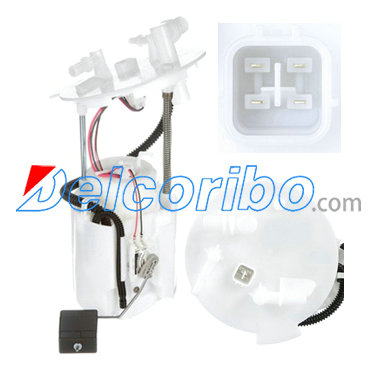

HONDA 17045TBAA00, 17045TBFA00, 17045TBFA01, 17047TBAA00, 17052TBAA00 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 780.0
Resistance Ohms Full 20.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

17045TBAA00, 17045TBFA00, 17045TBFA01, 17047TBAA00, 17052TBAA00,

DELPHI FG2128

HONDA CIVIC 2016-2019
