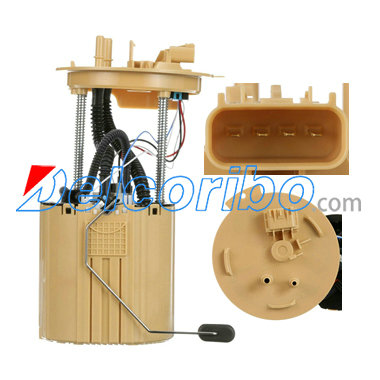

DELPHI FG2073, CHEVROLET 13587223, 13596945 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seals, Instruction Sheet
Vapor Pressure Sensor No
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Diesel
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Pump Type Electric

13587223, 13596945,

DELPHI FG2073
ACDELCO M100197

CHEVROLET CRUZE 2014-2015
