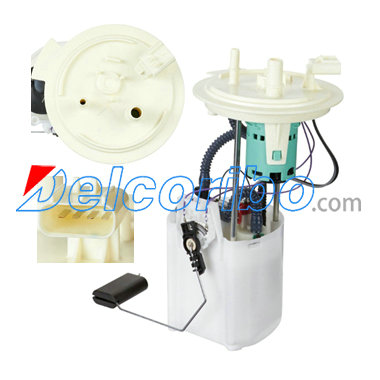

FORD FL1Z9A299B, FL1Z-9A299-B, FL1Z9H307D, FL1Z-9H307-D, FL1Z9H307F Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included No
Height (in) 12.3
Max Pressure Range (Psi) 61
Max Free Flow (Gph) 42
Resistance Empty (Ohms) 180
Resistance Full (Ohms) 10
Rheostat Range (Ohms) 180-10
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 36
Min Pressure Range (Psi) 55
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Volts 12 vDC

FL1Z9A299B, FL1Z9H307D, FL1Z 9H307 D, FL1Z9H307F, FL1Z 9H307 F,

SPECTRA PREMIUM SP2584M
DELPHI FG2067
MOTORCRAFT PFS1289

FORD EXPEDITION 2015-2017
LINCOLN NAVIGATOR 2015-2017
