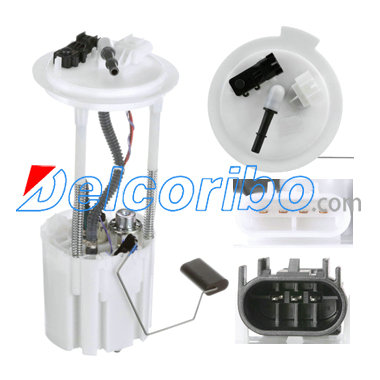

BUICK 19179764, 19257902, 19301260 Electric Fuel Pump Assembly

System Pressure 52 psi
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor Yes
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Outlet Outside Diameter (in) 0.375
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure (PS) 63.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 1
In Tank or External In Tank
Resistance Ohms Empty 250.0
Resistance Ohms Full 40.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Average Flow Rating (GP) 42
Pump Type Electric

19179764, 19257902, 19301260,

DELPHI FG2063
ACDELCO MU2170

BUICK LUCERNE 2009-2011
CADILLAC DTS 2009-2011
