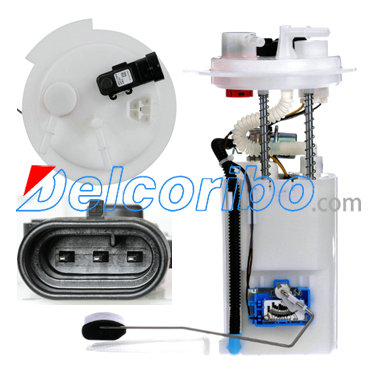

DELPHI FG1728, HYUNDAI 311100A600, 31110-0A600 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Instruction Sheet
System Pressure 55 psi
Vapor Pressure Sensor Yes
Fuel Level Sender Assembly Included Yes
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Terminal Type Blade
Gasket or Seal Included No
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 200.0
Resistance Ohms Full 8.0
Internal Or External Strainer External
Average Current Draw (A) 10
Pump Type Electric

311100A600,

DELPHI FG1728
CARTER P76616M

HYUNDAI SONATA 2009-2010
