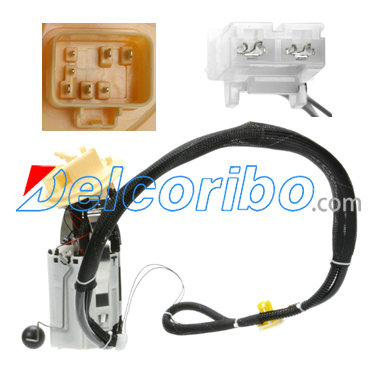

DELPHI FG1617, VOLVO 307617470 Electric Fuel Pump Assembly

Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Vapor Pressure Sensor No
Fuel Level Sender Assembly Included Yes
System Pressure 55 psi
Outlet Outside Diameter (in) 0.313
Voltage (2H) 12.0
Fuel Type Gas
Regulator Included Yes
Maximum Pressure (PS) 85.0
Terminal Type Blade
Gasket or Seal Included Yes
Terminal Quantity 7
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 3
In Tank or External In Tank
Resistance Ohms Empty 392.0
Resistance Ohms Full 12.0
Internal Or External Strainer Internal
Average Current Draw (A) 10
Average Flow Rating (GP) 70
Pump Type Electric

307617470,

DELPHI FG1617

VOLVO S60 2007-2009
VOLVO XC70 2007
