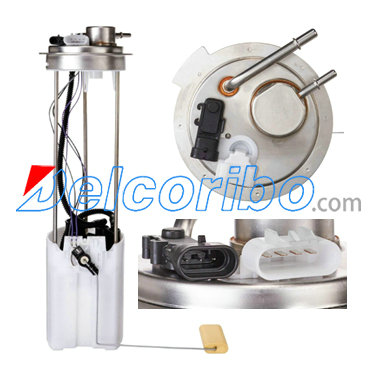

ISUZU 8253645780, 8253645830, 8253710510, 8973712210, 8973835480, 8981040010 Electric Fuel Pump Assembly

Description Fuel Pump Module Assembly
Gaskets Included Yes
Height (in) 20.2
Max Pressure Range (Psi) 130
Max Free Flow (Gph) 30
Resistance Empty (Ohms) 40
Resistance Full (Ohms) 250
Rheostat Range (Ohms) 40-250
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Flex / Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 30
Min Pressure Range (Psi) 72
Strainer Included Yes
Pin Count 4
Pin Shape Flat
Connector Shape Rectangular
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

25364583, 25371051, 25553770, 25631814, 8253645780, 8253645830, 8253710510, 8973712210, 8973835480, 8981040010, 8981040011, 8981040012, 97371220, 98104001,

SPECTRA PREMIUM SP4152M
DELPHI FG0382

ISUZU NPR 2004-2008
ISUZU NPR-HD 2004-2008
