FORD XL5Z9H307FA, XL5Z9H307FB, XL5Z9H307FG, XL5Z9H307FH, P2531S Electric Fuel Pump Assembly

FORD XL5Z9H307FA, XL5Z9H307FB, XL5Z9H307FG, XL5Z9H307FH, P2531S Electric Fuel Pump Assembly

FORD XL5Z9H307FA, XL5Z9H307FB, XL5Z9H307FG, XL5Z9H307FH, P2531S Electric Fuel Pump Assembly

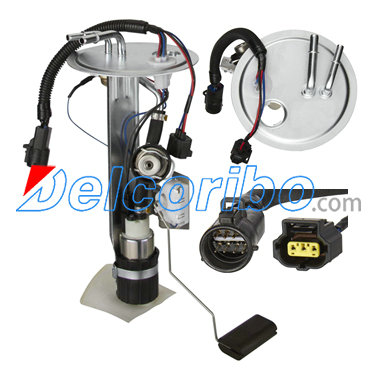

FPM2636  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 12.2
Max Pressure Range (Psi): 65.25
Max Free Flow (Gph): 45
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 35
Min Pressure Range (Psi): 55
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD XL5Z9H307FA, XL5Z 9H307 FA, XL5Z9H307FB, XL5Z 9H307 FB, XL5Z9H307FG, XL5Z 9H307 FG, XL5Z9H307FH, XL5Z 9H307 FH, P2531S, MAZDA ZZR113350, ZZR113350A, ZZR1 13350 A, ZZR113350B, ZZR1 13350 B,
SPECTRA PREMIUM SP2263H
DELPHI HP10229
AIRTEX E2263S
