home
>
Fuel System
>
Electric Fuel Pump Assembly
>
FORD AW1Z9H307A, AW1Z9H307B, AW1Z-9H307-B, BW1Z9H307A, BW1Z-9H307-A Electric Fuel Pump Assembly

FORD AW1Z9H307A, AW1Z9H307B, AW1Z-9H307-B, BW1Z9H307A, BW1Z-9H307-A Electric Fuel Pump Assembly

FORD AW1Z9H307A, AW1Z9H307B, AW1Z-9H307-B, BW1Z9H307A, BW1Z-9H307-A Electric Fuel Pump Assembly

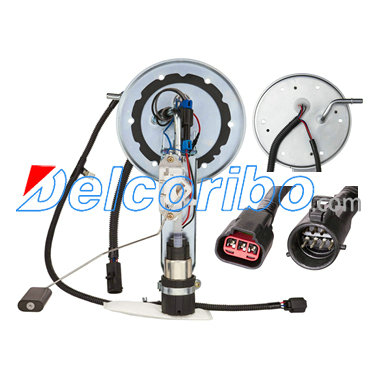

FPM2663  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 14.5
Max Pressure Range (Psi): 123.25
Max Free Flow (Gph): 72.72
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Flex / Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 63.44
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 7
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD AW1Z9H307A, AW1Z 9H307 A, AW1Z9H307B, AW1Z 9H307 B, BW1Z9H307A, BW1Z 9H307 A,
SPECTRA PREMIUM SP2134H
AIRTEX E2542S
DELPHI HP10199
