FORD XL5Z9H307DA, XL5Z 9H307-DA, XL5Z9H307DB, XL5Z 9H307-DB, XL5Z9H307DG, XL5Z9H307DH Electric Fuel Pump Assembly

FORD XL5Z9H307DA, XL5Z 9H307-DA, XL5Z9H307DB, XL5Z 9H307-DB, XL5Z9H307DG, XL5Z9H307DH Electric Fuel Pump Assembly

FORD XL5Z9H307DA, XL5Z 9H307-DA, XL5Z9H307DB, XL5Z 9H307-DB, XL5Z9H307DG, XL5Z9H307DH Electric Fuel Pump Assembly

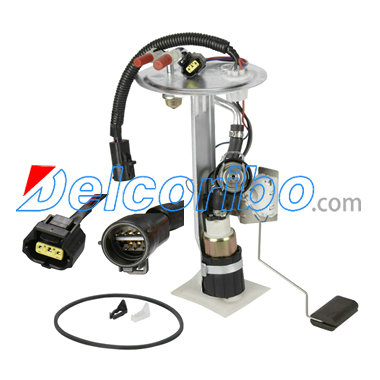

FPM2671  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 11.6
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 47.6
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34.3
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 8
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD XL5Z9H307DA, XL5Z 9H307 DA, XL5Z9H307DB, XL5Z 9H307 DB, XL5Z9H307DG, XL5Z 9H307 DG, XL5Z9H307DH, XL5Z 9H307 DH, ZZR013350, ZZR013350A, ZZR0 13350 A, P2529S,
SPECTRA PREMIUM SP2261H
DELPHI HP10227
AIRTEX E2261S
