FORD E7TZ9H307B, E7TZ9H307BA, YC2Z9H307BA, YC2Z9H307BB Electric Fuel Pump Assembly

FORD E7TZ9H307B, E7TZ9H307BA, YC2Z9H307BA, YC2Z9H307BB Electric Fuel Pump Assembly

FORD E7TZ9H307B, E7TZ9H307BA, YC2Z9H307BA, YC2Z9H307BB Electric Fuel Pump Assembly

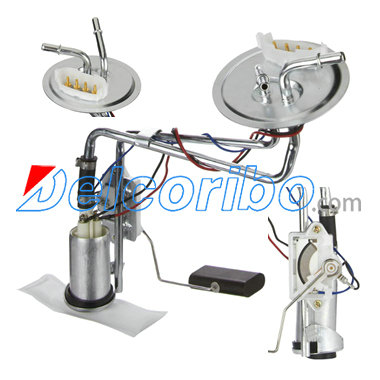

FPM2681  Electric Fuel Pump Assembly
Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 11.8
Max Pressure Range (Psi) 8.7
Max Free Flow (Gph) 45
Resistance Empty (Ohms) 15
Resistance Full (Ohms) 160
Rheostat Range (Ohms) 15-160
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 35
Min Pressure Range (Psi) 4.4
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC
FORD E7TZ9H307B, E7TZ 9H307 B, E7TZ9H307BA, E7TZ 9H307 BA, P223H, SP2240H, YC2Z9H307BA, YC2Z 9H307 BA, YC2Z9H307BB, YC2Z 9H307 BB, E7TZ9H307BA, E7TZ9H307C, E7TZ 9H307 C, E7TZ9H307CA, E7TZ 9H307 CA,
SPECTRA PREMIUM SP223H
DELPHI HP10149
AIRTEX E2103S
