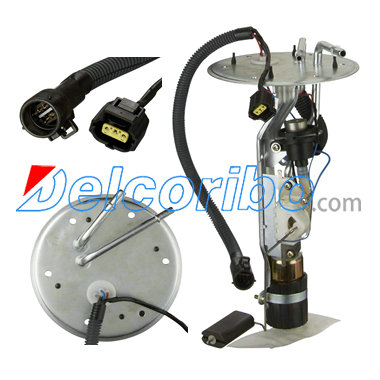

FORD 1L2Z9H307MA, 1L2Z9H307MB, 2L2Z9H307HA, 2L2Z9H307HB, 2L2Z9H307HC, 2L2Z9H307HD Electric Fuel Pump Assembly

Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 13.2
Max Pressure Range (Psi): 123
Max Free Flow (Gph): 47.6
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 34.3
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 7
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC

FORD 1L2Z9H307MA, 1L2Z 9H307 MA, 1L2Z9H307MB, 1L2Z 9H307 MB, 2L2Z9H307HA, 2L2Z 9H307 HA, 2L2Z9H307HB, 2L2Z 9H307 HB, 2L2Z9H307HC, 2L2Z 9H307 HC, 2L2Z9H307HD, 2L2Z 9H307 HD, P2558S,

SPECTRA PREMIUM SP2332H
DELPHI HP10134
AIRTEX E2332S
