Fuel System
>
Electric Fuel Pump Assembly
>
FORD 2L1Z9H307CA, 2L1Z9H307CB, 2L1Z9H307CG, 2L1Z9H307CH, 2L1Z9H307CJ Electric Fuel Pump Assembly

FORD 2L1Z9H307CA, 2L1Z9H307CB, 2L1Z9H307CG, 2L1Z9H307CH, 2L1Z9H307CJ Electric Fuel Pump Assembly

FORD 2L1Z9H307CA, 2L1Z9H307CB, 2L1Z9H307CG, 2L1Z9H307CH, 2L1Z9H307CJ Electric Fuel Pump Assembly

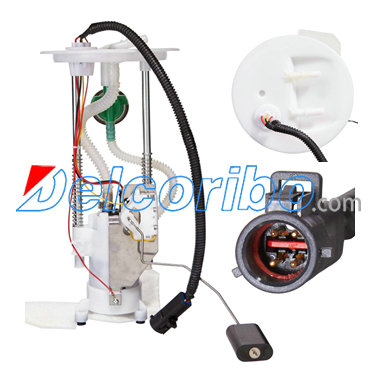

FPM2709  Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 11.8
Max Pressure Range (Psi): 52.2
Max Free Flow (Gph): 52.5
Resistance Empty (Ohms): 15
Resistance Full (Ohms): 160
Rheostat Range (Ohms): 15-160
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 46.3
Min Pressure Range (Psi): 46.4
Strainer Included: Yes
Pin Count: 4
Pin Shape: Round
Connector Shape: Round
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
FORD 2L1Z9H307CA, 2L1Z 9H307 CA, 2L1Z9H307CB, 2L1Z 9H307 CB, 2L1Z9H307CG, 2L1Z 9H307 CG, 2L1Z9H307CH, 2L1Z 9H307 CH, 2L1Z9H307CJ, 2L1Z 9H307 CJ,
SPECTRA PREMIUM SP2361M
DELPHI FG0862
AIRTEX E2361M
CARTER P76023M
