GM 25028124 Electric Fuel Pump Assembly

GM 25028124 Electric Fuel Pump Assembly

GM 25028124 Electric Fuel Pump Assembly

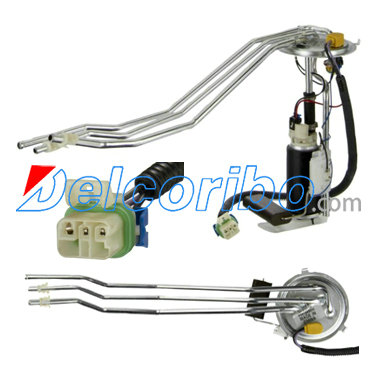

FPM2716  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 9.8
Max Pressure Range (Psi): 109
Max Free Flow (Gph): 44.9
Resistance Empty (Ohms): 0
Resistance Full (Ohms): 95
Rheostat Range (Ohms): 0-95
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 3/8
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 39.6
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 3
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Female
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
GM 25028124,
SPECTRA PREMIUM SP23B1H
DORMAN 692103
