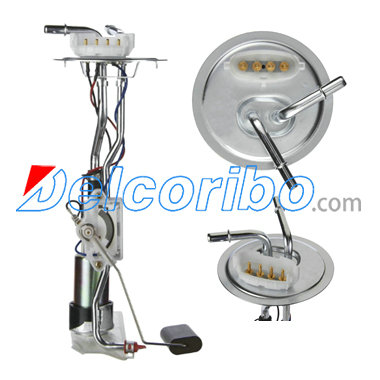

FORD A2242390006, F57Z9H307E, F57Z9H307EA, E9TZ9H307B, F1TZ9H307D, F0TZ9H307L Electric Fuel Pump Assembly

Description Fuel Pump And Sender Assembly
Gaskets Included Yes
Height (in) 12.83
Max Pressure Range (Psi) 125
Max Free Flow (Gph) 30
Resistance Empty (Ohms) 15
Resistance Full (Ohms) 165
Rheostat Range (Ohms) 15-165
Inlet Quantity 1
Inlet Type Quick Connect
Inlet Diameter (IN) 5/16
Outlet Quantity 1
Outlet Type Quick Connect
Outlet Diameter (IN) 3/8
Compatible Fuels Gas
Wiring Harness Included No
Hardware Included Yes
Min Free Flow Rate (Gph) 20
Min Pressure Range (Psi) 100
Strainer Included Yes
Pin Count 4
Pin Shape Round
Connector Shape Oval
Connector Gender Male
Inline Pump No
In Tank Yes
Negative Ground Yes
Pump Type Turbine
Volts 12 vDC

FORD A2242390006, F57Z9H307E, F57Z 9H307 E, F57Z9H307EA, F57Z 9H307 EA, P333H, P353H, E9TZ9H307B, E9TZ 9H307 B, F1TZ9H307D, F1TZ 9H307 D, F0TZ9H307L, F0TZ 9H307 L, F57Z9H307F, F57Z 9H307 F, F57Z9H307FA, F57Z 9H307 FA, MAZDA ZZM013350, ZZM513350, ZZM513350A, ZZM5 13350 A, ZZM413350, ZZM413350A, ZZM4 13350 A,

SPECTRA PREMIUM SP333H
DELPHI HP10141
DELPHI HP10144
AIRTEX E2106S
AIRTEX E2078S
MOTORCRAFT PFS38
