NISSAN 170403S505, 17040-3S505, 170403S515, 17040-3S515, 170405S105, 17040-5S105 Electric Fuel Pump Assembly

NISSAN 170403S505, 17040-3S505, 170403S515, 17040-3S515, 170405S105, 17040-5S105 Electric Fuel Pump Assembly

NISSAN 170403S505, 17040-3S505, 170403S515, 17040-3S515, 170405S105, 17040-5S105 Electric Fuel Pump Assembly

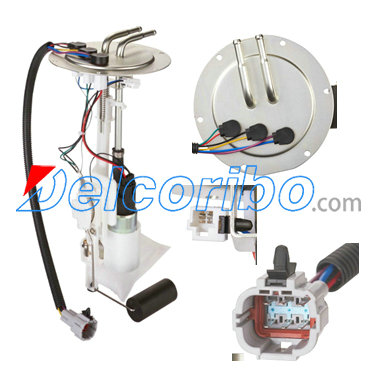

FPM2746  Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: No
Height (in): 13.6
Max Pressure Range (Psi): 60
Max Free Flow (Gph): 50
Resistance Empty (Ohms): 80
Resistance Full (Ohms): 5
Rheostat Range (Ohms): 81-5
Inlet Quantity: 1
Inlet Type: Butt Flare
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Butt Flare
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 40
Min Pressure Range (Psi): 50
Strainer Included: Yes
Pin Count: 6
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
NISSAN 170403S505, 17040 3S505, 170403S515, 17040 3S515, 170405S105, 17040 5S105,
SPECTRA PREMIUM SP4016M
AIRTEX E8441S
DELPHI HP10257
CARTER P76550M
