AIRTEX E8601S, SUZUKI 1510052D30 Electric Fuel Pump Assembly

AIRTEX E8601S, SUZUKI 1510052D30 Electric Fuel Pump Assembly

AIRTEX E8601S, SUZUKI 1510052D30 Electric Fuel Pump Assembly

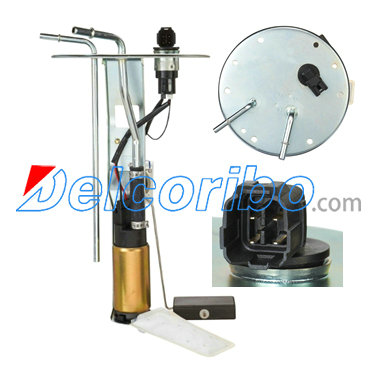

FPM2752  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 9
Max Pressure Range (Psi): 80
Max Free Flow (Gph): 40
Resistance Empty (Ohms): 120
Resistance Full (Ohms): 10
Rheostat Range (Ohms): 120-10
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 30
Min Pressure Range (Psi): 70
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
SUZUKI 1510052D30,
SPECTRA PREMIUM SP4058H
DELPHI HP10208
AIRTEX E8601S
CARTER P76563M
