TOYOTA 772030C050, 77203-0C050, 772400C051, 77240-0C051 Electric Fuel Pump Assembly

TOYOTA 772030C050, 77203-0C050, 772400C051, 77240-0C051 Electric Fuel Pump Assembly

TOYOTA 772030C050, 77203-0C050, 772400C051, 77240-0C051 Electric Fuel Pump Assembly

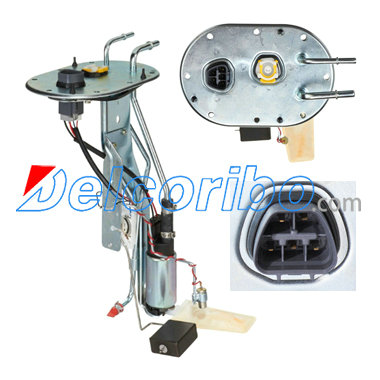

FPM2782  Electric Fuel Pump Assembly
Description: Fuel Pump Hanger Assembly
Gaskets Included: Yes
Height (in): 13
Max Pressure Range (Psi): 123.3
Max Free Flow (Gph): 66.53
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 3
Rheostat Range (Ohms): 110-3
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 57
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
772030C050, 772400C051,
SPECTRA PREMIUM SP9007H
