Electric Fuel Pump Assembly
>
TOYOTA 2321776040, 2321903010, 2322146010, 2322916010, 2322916020, 2323911010, 2324974610 Electric Fuel Pump Assembly

TOYOTA 2321776040, 2321903010, 2322146010, 2322916010, 2322916020, 2323911010, 2324974610 Electric Fuel Pump Assembly

TOYOTA 2321776040, 2321903010, 2322146010, 2322916010, 2322916020, 2323911010, 2324974610 Electric Fuel Pump Assembly

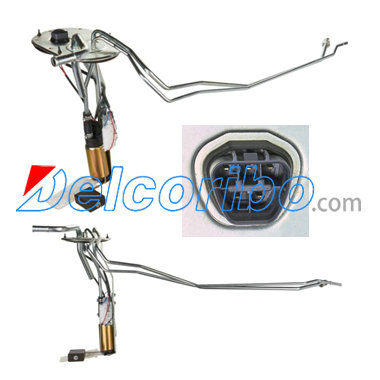

FPM2784  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 13
Max Pressure Range (Psi): 109
Max Free Flow (Gph): 55
Resistance Empty (Ohms): 189
Resistance Full (Ohms): 13
Rheostat Range (Ohms): 189-13
Inlet Quantity: 1
Inlet Type: For Hose
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Threaded
Outlet Thread Sizes: M14-1.5
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 45
Min Pressure Range (Psi): 80
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
2321746090, 2321776040, 2321903010, 2322146010, 2322916010, 2322916020, 2323911010, 2324974610, 7716906010, 7716960010, 7720335460, 7720335461, 8332035590, 8332080331, 9015950219, 9046712067, 9338150219,
SPECTRA PREMIUM SP9013H
