HONDA 17040S10C10, 17040-S10-C10, 17040-S10-C20, 17040S10C20, 17040S10L00 Electric Fuel Pump Assembly

HONDA 17040S10C10, 17040-S10-C10, 17040-S10-C20, 17040S10C20, 17040S10L00 Electric Fuel Pump Assembly

HONDA 17040S10C10, 17040-S10-C10, 17040-S10-C20, 17040S10C20, 17040S10L00 Electric Fuel Pump Assembly

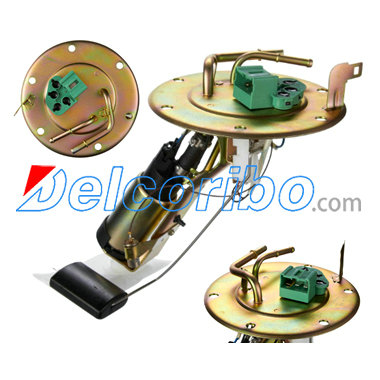

FPM2786  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 13.2
Max Pressure Range (Psi): 123.3
Max Free Flow (Gph): 40.2
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 110-4
Inlet Quantity: 1
Inlet Type: Quick Connect
Inlet Diameter (IN): 5/16
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 30.9
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 3
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Volts: 12 vDC
17040S10C10, 17040S10C20, 17040S10L00,
SPECTRA PREMIUM SP9153M
DELPHI FG1359
AIRTEX E8461S
