HONDA 17040S10A00, 17040S10A01, 17040S10C01, 17040S10C20, 17040-S10-C20 Electric Fuel Pump Assembly

HONDA 17040S10A00, 17040S10A01, 17040S10C01, 17040S10C20, 17040-S10-C20 Electric Fuel Pump Assembly

HONDA 17040S10A00, 17040S10A01, 17040S10C01, 17040S10C20, 17040-S10-C20 Electric Fuel Pump Assembly

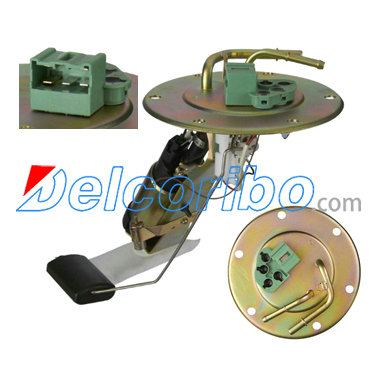

FPM2787  Electric Fuel Pump Assembly
Description: Fuel Pump And Sender Assembly
Gaskets Included: Yes
Height (in): 8.1
Max Pressure Range (Psi): 116
Max Free Flow (Gph): 48
Resistance Empty (Ohms): 110
Resistance Full (Ohms): 5
Rheostat Range (Ohms): 110-5
Inlet Quantity: 1
Inlet Type: Butt Flare
Inlet Diameter (IN): 1/4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 38.7
Min Pressure Range (Psi): 72.5
Strainer Included: Yes
Pin Count: 5
Pin Shape: Flat
Connector Shape: Rectangular
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
17040S10A00, 17040S10A01, 17040S10C01, 17040S10C20,
SPECTRA PREMIUM SP9155H
DELPHI FG1359
DELPHI HP10240
AIRTEX E8460S
AIRTEX E8461S
CARTER P76553S
