Mitsubishi A860T30370, A860X39770, A860T39770, A860T34570,

Diodes: 8-30 Ampere
Mounting Length: 75mm

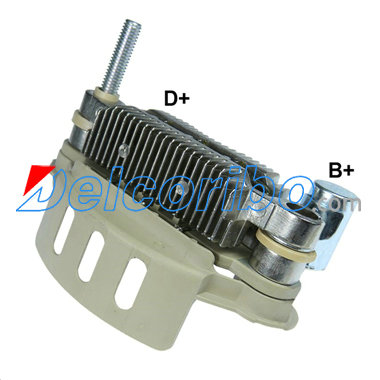

135215, IMR7558, (Ref# 31-8359), Rectifier, For: Mitsubishi 50-55A IR/IF Alternators, Used On: (2001-89) Chevrolet, Geo, Suzuki, Replaces: Mitsubishi A860T30370, A860X39770, A860T39770, A860T34570, Suzuki 31621-60A20, 3162160A20, MOBILETRON RM-22, GAUSS GA1278, Unit Nos: Mitsubishi A1T03191, A1T03195, A5TA0791, A001T02674, A001T02674D, A001T03191, A001T03191ZC, A001T03195ZC, A001T04495, A005T00972, A005T01271, A005T02477, Lester Nos: 13213, 13336, 13416, WAI Ref. Nos: 1-1229-01MI, 1-1229-02MI, 1-1537-02MI, 1122901MI, 1122902MI, 1153702MI, Dim: 75mm Mtg. Length, M6 x 1.0 Batt. Term., Note: With diode trio. 8mm stator lead, insulator height., Similar to IMR7560 except IMR7560 has, 11mm stator lead insulator height., Features: 8-30A diodes

AS-PL ARC5009
LAUBER CQ1080423
MOBILETRON RM-22 RM22, RM-147 RM147
PowerMax 81112594
WAIglobal IMR7558

Application:
ASUNA TRUCK: Sunrunner L4 1.6L 1992>1993
CHEVROLET TRUCK: Tracker L4 1.6L 1989>1991
GEO TRUCK: Tracker L4 1.6L 1989>1995
GMC TRUCK: Tracker L4 1.6L 1989>1991
PONTIAC TRUCK: Sunrunner L4 1.6L 1994
SUZUKI TRUCK: Sidekick L4 1.6L 1989>1994
SUZUKI CAR: Swift L4 1.3L 1993>1994, Swift L4 1.3L DOHC 1989>1992, Vitara 1600 1988>1993, X-90 1600 16V 1995>1998
GEO CAR: Metro L4 1.3L 1992>1994
