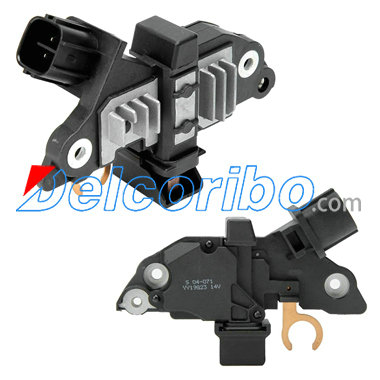

Bosch F00M145236, F-00M-145-236, F 00M 145 236, for TOYOTA Voltage Regulator

A-Circuit
Voltage Set Point 14.5v
IG-L-NC-FR
For 14mm OD slip ring
IG&Lamp activeted , With output
Soft Start
Field Shorted Circuit Protection
Lamp Short Circuit Protection

233587
IB236
Regulator
Manufacturer: Bosch
Replacing:
Bosch F00M145236, F-00M-145-236, F 00M 145 236, F00M145305, F-00M-145-305, F 00M 145 305, F00M145324, F-00M-145-324, F 00M 145 324, F00M145334, F-00M-145-334, F 00M 145 334, F00M145376, F-00M-145-376, F 00M 145 376, F00M145392, F-00M-145-392, F 00M 145 392, F00M145865, F-00M-145-865, F 00M 145 865, F00M145873, F-00M-145-873, F 00M 145 873, F00M145874, F-00M-145-874, F 00M 145 874, F00M145659, F-00M-145-659, F 00M 145 659, Toyota 27700-0L020, 27702-0D020
Servicing: 0120000023, 01240AC30B, 01240AC5HB, 01240AD39A, 01240AD39B, 0124225051, 0124225052, 0124225053, 0124225054, 0124315015
14 Volt, 14.4 Volt setting, Dist. mount. holes 79.00, Regulator type Electronic, Slip ring O.D. 16.00 mm.
Alternative no.: 333803

ALANKO 700249
AS-PL ARE0045
BOSCH F 00M 145 873 F00M145873, F 00M 145 874 F00M145874
CASCO CRE10137GS, CRE10138GS
ERA 215238
HELLA 5DR 009 728-421 5DR009728421
HITACHI 130617
MESSMER 215238
MOBILETRON VR-B243 VRB243
PowerMax 1114339, 81114339
SANDO SRE10137.1 SRE101371, SRE10138.1 SRE101381
WAIglobal IB236

TOYOTA COROLLA Liftback (_E11_) 1997/04 - 2002/01
TOYOTA COROLLA Compact (_E11_) 1997/04 - 2002/01
TOYOTA AVENSIS (_T22_) 1997/09 - 2003/02
TOYOTA AVENSIS Station Wagon (_T22_) 1997/09 - 2003/02
TOYOTA AVENSIS Liftback (_T22_) 1997/09 - 2003/02
TOYOTA AVENSIS Saloon (T25) 2003/04 - 2008/11
TOYOTA AVENSIS Estate (T25) 2003/04 - /
TOYOTA AVENSIS (T25_) 2003/04 - 2008/11
TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2004/03 - 2009/04
TOYOTA HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2004/11 - /
