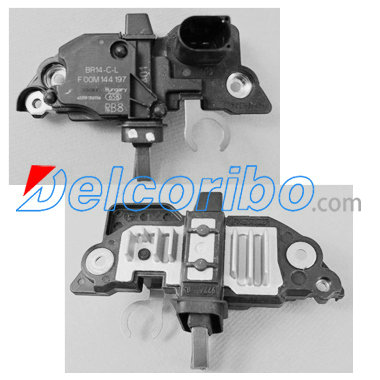

VW 06E 903 803 F, 07K-903-803 Voltage Regulator

B-Circuit
10.7 - 16.0 Vset
LIN(COM) Regulator
With Soft Start and LRC Function
With Field Short Circuit Protection
LIN or Stator Activated
LIN1.3
COM ID Code: 24

330846
IB6197
Regulator
Replacing: Audi, VW 06E 903 803 F, 07K-903-803, Bosch F00M144151, F-00M-144-151, F 00M 144 151, F00M144180, F-00M-144-180, F 00M 144 180, F00M144197, F-00M-144-197, F 00M 144 197, F00M145662, F-00M-145-662, F 00M 145 662, F00M145851, F-00M-145-851, F 00M 145 851, Mercedes-Benz 003-154-84-06, 003-154-93-06, 003-154-97-06, A-003-154-93-06, A-003-154-97-06, A003-154-84-06, 0031548406, 0031549306, 0031549706, A0031549306, A0031549706, A0031548406 MOBILETRON VR-B4197
Servicing: 0124225058, 0124225064, 0124525113, 0124525114, 0124525115, 0124525116, 0124525171, 0124525187, 0124525188, 0124525200, 0124525215, 0124525220, 0124525223, 0124525226, 0124525228
14 Volt, Dist. mount. holes 79.00, Regulator type Electronic, Capacitor w/o
Alternative no.: 333556

AS-PL ARE0128
BOSCH F 00M 144 151 F00M144151, F 00M 145 851 F00M145851
HELLA 5DR 009 728-021 5DR009728021, 5DR 009 728-541 5DR009728541
MOBILETRON VR-B4197 VRB4197
WAIglobal IB6197

VW - Europe (2008-2016) AUDI A3 (8P1) 2003/05 - 2012/08
AUDI A3 Sportback (8PA) 2004/09 - 2013/03
AUDI TT (8J3) 2006/08 - 2014/06
AUDI TT Roadster (8J9) 2007/03 - 2014/06
AUDI A5 (8T3) 2007/06 - /
AUDI A4 (8K2, B8) 2007/11 - /
AUDI A3 Convertible (8P7) 2008/04 - 2013/05
AUDI A4 Avant (8K5, B8) 2007/11 - /
AUDI Q5 (8R) 2008/11 - /
AUDI A5 Convertible (8F7) 2009/03 - /
AUDI A4 Allroad (8KH, B8) 2009/04 - /
AUDI A5 Sportback (8TA) 2009/09 - /
AUDI A1 (8X1, 8XF) 2010/05 - /
AUDI A1 Sportback (8XA, 8XK) 2011/09 - /
AUDI Q3 (8U) 2011/06 - /
CHRYSLER PT CRUISER (PT_) 2000/06 - 2010/12
SEAT ALTEA (5P1) 2004/03 - /
SEAT LEON (1P1) 2005/05 - 2012/12
SEAT ALTEA XL (5P5, 5P8) 2006/10 - /
SEAT IBIZA V (6J5, 6P5) 2008/03 - /
SEAT IBIZA V SPORTCOUPE (6J1, 6P1) 2008/07 - /
SEAT IBIZA V ST (6J8, 6P8) 2010/03 - /
SEAT ALHAMBRA (710, 711) 2010/06 - /
SEAT TOLEDO IV (KG3) 2012/07 - /
SKODA ROOMSTER (5J) 2006/03 - /
SKODA FABIA 2006/12 - 2014/12
SKODA FABIA Combi 2007/10 - 2014/12
SKODA ROOMSTER Praktik (5J) 2007/03 - /
SKODA SUPERB (3T4) 2008/03 - 2015/05
SKODA YETI (5L) 2009/05 - /
SKODA SUPERB Estate (3T5) 2009/10 - 2015/05
SKODA RAPID (NH3) 2012/07 - /
SKODA RAPID Spaceback (NH1) 2012/07 - /
VW CADDY III Box (2KA, 2KH, 2CA, 2CH) 2004/03 - /
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 2004/03 - /
VW GOLF PLUS (5M1, 521) 2005/01 - 2013/12
VW PASSAT (3C2) 2005/03 - 2010/11
VW PASSAT Variant (3C5) 2005/08 - 2011/10
VW EOS (1F7, 1F8) 2006/03 - /
VW TIGUAN (5N_) 2007/09 - /
VW PASSAT CC (357) 2008/05 - 2012/01
VW SCIROCCO (137, 138) 2008/05 - /
VW GOLF VI (5K1) 2008/10 - 2013/11
VW POLO (6R, 6C) 2009/06 - /
VW GOLF VI Variant (AJ5) 2009/07 - 2013/07
VW SHARAN (7N1, 7N2) 2010/05 - /
VW PASSAT (362) 2010/08 - 2014/12
VW PASSAT Variant (365) 2010/08 - 2014/12
VW JETTA IV (162, 163) 2010/04 - /
VW GOLF VI Convertible (517) 2011/03 - /
VW BEETLE (5C1) 2011/04 - /
VW CC (358) 2011/11 - /
VW TOURAN (1T3) 2010/05 - /
VW BEETLE Convertible (5C7) 2011/12 - /
VW CADDY IV Estate (SAB, SAJ) 2015/05 - /
VW CADDY IV Box (SAA, SAH) 2015/05 - /
