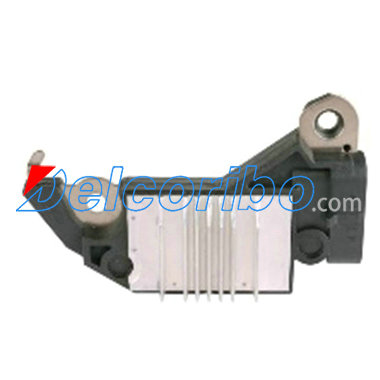

Delco 19009748, 19009749, Voltage Regulator

Delco 19009748, 19009749, Voltage Regulator

Delco 19009748, 19009749, Voltage Regulator
VRT1194  Voltage Regulators
233251
D749XHD
(Ref# 35-158)
Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 14.8 Vset, 2.5 sec. LRC
For: Delco CS130D Series IR/IF Alternators
Used On: (2005-99) Buick, Chevrolet, GMC, Oldsmobile, Pontiac
Replaces: Delco 19009748, 19009749, Delco ASVR 19009761, 19009718, Original Reference Number 749, 9748, 9761
(regulator
Servicing:CS130D, 10437987, 10437988, 10464413, 10464424, 10464427, 10464437, 10464462, 10480288, 10480292, 10480318, 10480330
stamped: 749, 9748, 9761)
Unit Nos: Delco 10437987, 10437988, 10449257, 10480288, 10480292, 10480317, 10480318, 10480330, 10480331, 10480336, 10480346, 10480348, 10480352, 10480378, 15760058
Lester Nos: 8234, 8243, 8249, 8270, 8271, 8272, 8279, 8283
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
AS-PL ARE1050
CASCO CRE60112AS
MAGNETI MARELLI 940016071000, 940016071100
PowerMax 81114971
SANDO SRE60112.0 SRE601120
WAIglobal D749XHD
ERA 215119
MESSMER 215119
