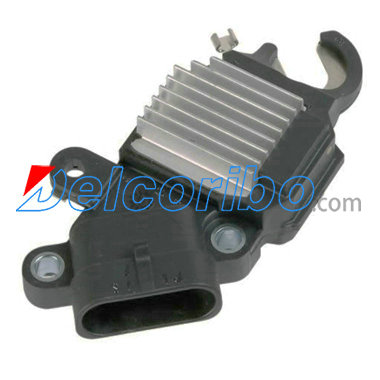

D202XHD
Regulator
12 Volt, B-Circuit, P-L-F-S Terminals, 14.2 Vset, 2.5 sec. LRC
For: Delco AD230, AD244 Series IR/IF Alternators
Used On: Chevrolet Trucks, GMC Trucks
Replaces: Delco 10454669, 15163024, 15163025, 19051739
(regulator stamped: 1739 or regulator
rectifier assy. Stamped:
1519, 2584)
Unit Nos: Delco 10480270, 10480271, 10480479, 10480480, 15056099, 15056100, 15087020, 15087021, 15087022, 15087023, 15087024, 15769252, 15769253, 15769254
Lester Nos: 8490, 8491, 8492, 8493, 8494, 8495, 8496
Note: Without temperature compensation.
Designed for DR4402, DR4403 series rectifiers w/ screw down
collar.
Features:
Heavy Duty ASVR Design
OE compliant functions
performance: current limiting, thermal
shutdown, load dump protection, shorted field
lamp circuit
protection
Welded construction - no solder joints for hi-temperature reliability
increased field life
AS-PL ARE1028
PowerMax 1119879
WAIglobal D202XHD
