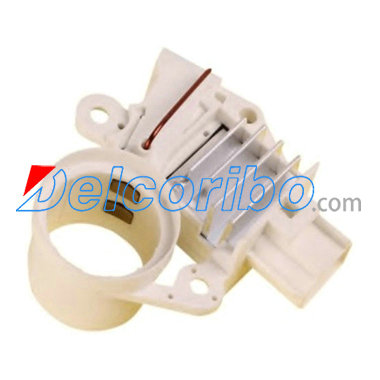

Ford VP4F1U-10C359-AA, VP4F1U10C359AA Voltage Regulator

A-Circuit
AS-RC-LI
Voltage Set Point 14.0V
PCM controlled regulation voltage

233232
F601
(Ref# 35-213)
Regulator / Brush Holder Assy.
12 Volt, A-Circuit, LI-RC-AS Terminals
14.0 Vset, White w/ Black Cover*
For: Ford 6G Series IR/IF Alternators
Used On: (2005-99) Ford, Mazda, Lincoln, Mercury
Replaces: Visteon ALT-C-160, Ford VP4F1U-10C359-AA, VP4F1U10C359AA, VP4L3U-10C359-AA, VP4L3U10C359AA, XW4U-10C359-AB, XW4U10C359AB, GAUSS GA891
Unit Nos: Ford 1L8U-10300-AB, 1L8U-10300-AC, 1L8Z-10346-AB, 1S41-10300-BB, 2F1U-10300-DA, 2F1Z-10346-DA, 3W1U-10300-BB, 3W1Z-10346-BA, 4L3Z-10346-BA, 98AB-10300-EB, 98AB-10300-FC, 98AZ-10346-EA, 98AZ-10346-FA, XF2U-10300-AB, XF2U-10300-BC, XF2U-10300-BD, XF2Z-10346-AA, XF2Z-10346-BA, XR8U-10300-AE, XR8U-10300-AF, XR8U-10300-CE, XR8Z-10346-AA, XR8Z-10346-CE, XW4U-10300-AA, XW4U-10300-BA, XW4U-10300-BB, XW4U-10300-CC, XW4U-10300-CD, XW4U-10300-CE, XW4Z-10346-AA, XW4Z-10346-BA, XW4Z-10346-CC, 1L8U10300AB, 1L8U10300AC, 1L8Z10346AB, 1S4110300BB, 2F1U10300DA, 2F1Z10346DA, 3W1U10300BB, 3W1Z10346BA, 4L3Z10346BA, 98AB10300EB, 98AB10300FC, 98AZ10346EA, 98AZ10346FA, XF2U10300AB, XF2U10300BC, XF2U10300BD, XF2Z10346AA, XF2Z10346BA, XR8U10300AE, XR8U10300AF, XR8U10300CE, XR8Z10346AA, XR8Z10346CE, XW4U10300AA, XW4U10300BA, XW4U10300BB, XW4U10300CC, XW4U10300CD, XW4U10300CE, XW4Z10346AA, XW4Z10346BA, XW4Z10346CC
Lester Nos: 7788, 8253, 8255, 8256, 8260, 8261, 8268, 8315
Note: Regulation Voltage controlled by vehicle PCM (PWM signal
input to RC-terminal).
LI-terminal output provides feedback to vehicle PCM.
Vehicle indicator lamp is fully controlled by the vehicle PCM.
*F601 also replaces Ford OE white body regulator w/ blue cover.
Components:
38-217-1 Brush
39-2702 Brush Spring
Features:
Computer controlled voltage regulation

AS-PL ARE9033
ERA 215183
LAUBER CQ1010570
MESSMER 215183
MOBILETRON VR-F910 VRF910
PowerMax 81111074
WAIglobal F601, F601HD-B100 F601HDB100, F601HD

FORD MONDEO III Saloon (B4Y) 2000/10 - 2007/03
FORD MONDEO III (B5Y) 2000/10 - 2007/03
FORD MONDEO III Estate (BWY) 2000/10 - 2007/03
FORD USA WINDSTAR (A3) 1995/01 - /
