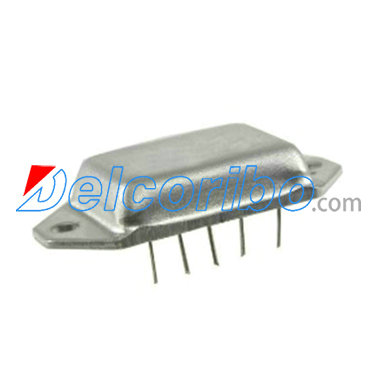

NISSAN Voltage Regulator 23125-F2500, 23215-B8900, 23215-B9800

A-Circuit
Voltage Set Point 14.3V
A-Circuit
Voltage Set Point 14.3V

130834
IH210-1
(Ref# 35-8100)
Regulator
12 Volt, A-Circuit, B-S-L-F-E Terminals, 14.3 Vset
For: Hitachi IR/EF Alternators
Used On: (1994-78) Nissan, Subaru
Replaces: Hitachi TR1Z-27, TR1Z-33, TR1Z-34, TR1Z-47, TR1Z-48, TR1Z-56, TR1Z-65, Marelli 940038078, 940038089, Nissan, Infiniti 23125-F2500, 23215-B8900, 23215-B9800, 23215-E3200, 23215-E3201, 23215-F2500, 23215-P2500, 23215-Q4601, 23215-Q4602, Subaru 42990-7100, 42990-7110, 49575-7101, 49575-7301 , BOSCH 0986192026, Lucas UCJ101
Unit Nos: Hitachi LR135, LR-32, LR-41B, LR-44, LR-61, LR-61B, LR-130, LR138-01, LR150-30B, LR150-31, LR150-35, LR150-36, LR150-46, LR150-50, LR150-51, LR150-52, LR150-53, LR150-58, LR150-94B, LR150-98, LR150-98B, LR150-98E, LR150-99, LR150-99B -101B, LR150-99B -125, LR150-99B -125B, LR150-99B -132B, LR150-99B -140, LR150-99B -177, LR150-99B -194, LR150-99B -194B, LR150-99B -197, LR150-99B -197B, LR150-99B -218, LR155-15, LR155-15B, LR155-15C, LR155-18, LR155-23, LR155-24, LR160-20, LR160-42, LR160-42B, LR160-46, LR160-47, LR160-57, LR160-61, LR160-62, LR160-74, LR160-75, LR160-78, LR160-78B, LR160-78C, LR160-82, LR160-82B, LR160-84, LR160-84B, LR160-85B, LR160-93, LR160-104, LR160-105, LR160-109, LR160-109C, LR160-113, LR160-121, LR160-124, LR160-130, LR160-137, LR160-138, LR160-139, LR160-140B, LR160-151, LR160-151R, LR160-166, LR170-02B, LR170-10, LR170-14, LR170-18, LR170-21, LR170-22, LR180-01B, LR180-02
Lester Nos: 14185, 231, 255, 300, 301, 303, 585, 587, 588, 592, 647, 652, 659, 660, 664, 665, 721, 742, 744, 745, 746, 747, 749, 751
WAI Ref. Nos: 1-1096-01HI, 1-1097-01HI, 1-1104-01HI, 1-1109-01HI, 1-1112-01HI, 1-1114-01HI, 1-1115-01HI, 1-1117-01HI, 1-1124-01HI, 1-1131-01HI, 1-1134-01HI, 1-1253-01HI, 1-1567-01HI, 1-1569-01HI, 1-1593-01HI, 1-1593-02HI
Note: Used in IH203 regulator / brush holder assy.

ACDELCO E649A
AIRTEX / WELLS 1V1234
ALANKO 700346
ASHIKA 77-01-107 7701107
CASCO CRE20100AS
ERA 215372
JAPANPARTS RE-107 RE107
JAPKO 77107
MAGNETI MARELLI 940016087900, 940016088000
MDR MAR-9107 MAR9107
MESSMER 215372
MOBILETRON VR-H2000-1 VRH20001, VR-H2000-1H VRH20001H, VR-H2000-1L VRH20001L, VR-H2000-31 VRH200031, VR-H2000-32 VRH200032
PARTS-MALL PXPBH-002 PXPBH002
SANDO SRE20100.0 SRE201000
STANDARD VR162
STELLOX 06-71685-SX 0671685SX
WAIglobal IH210, IH210HD
AINDE H-2000-1 H20001
AS-PL ARE2002

NISSAN MICRA I (K10) 1982/12 - 1992/11
NISSAN PRAIRIE (M10, NM10) 1982/12 - 1988/10
NISSAN STANZA Hatchback (T11) 1981/08 - 1985/12
NISSAN VANETTE Bus (KC120) 1981/06 - 1987/12
NISSAN PICK UP (720) 1980/01 - 1986/03
NISSAN VANETTE Box (C120) 1981/07 - 1987/06
