NISSAN L180-3315, L190-3315, L180-7315, L1803315 Voltage Regulator

A-Circuit
S-L
Voltage Set Point 14.6V

132993
IH238
(Ref# 35-8103)

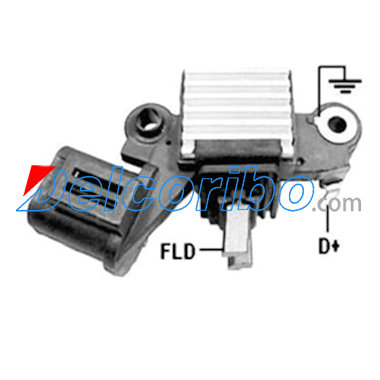

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, S-L Terminals, 14.6 Vset
For: Hitachi IR/IF Alternators
Used On: (1985) Nissan
Replaces: Hitachi L180-3315, L190-3315, L180-7315, L1803315, L1903315, L1807315, Nissan 23133-16E05, 23133-F6100, 2313316E05, 23133F6100, MOBIETRON VR-H2000-4H
Unit Nos: Hitachi LR170-704, LR170-704, LR170-713, LR170-721, LR170-721B, LR180-704, LR180-704B, LR190-704, LR190-709, LR170704, LR170704, LR170713, LR170721, LR170721B, LR180704, LR180704B, LR190704, LR190709
Lester Nos: 14651, 14661, 14752
WAI Ref. Nos: 1-1122-01HI, 1-1533-01HI
Note: Without capacitor. For version w/ capacitor use IH239
Components:
TRI423 Repair Circuit (Transpo IH238 only)
TRI420 Repair Circuit (OE regulator only)

ACDELCO E670
AIRTEX / WELLS 1V1248
AS-PL ARE2020
ERA 215378
MESSMER 215378
MOBILETRON VR-H2000-4H VRH20004H
WAIglobal IH238, IH239
ALANKO 700383, 700384
CASCO CRE20114AS
LAUBER CQ1010320
PowerMax 81114977
SANDO SRE20114.0 SRE201140

NISSAN MAXIMA II (J30) 1988/10 - 1995/02
NISSAN 300 ZX (Z31) 1984/01 - 1990/10
