Honda 04314-P08-014, 04314P08014 Voltage Regulator

A-Circuit
C-FR-IG-L
26mm ID
Voltage Set Point 14.5V

CARGO 135064 , 136648
IM839
(Ref# 35-8340)

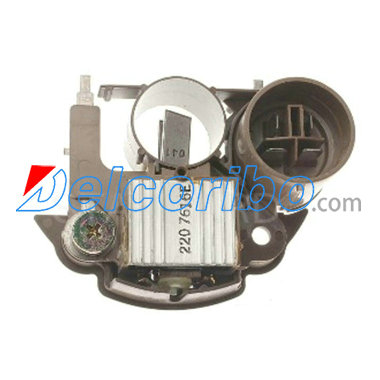

Regulator / Brush Holder Assy.
12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Vset
For: Mitsubishi IR/IF Alternators
Used On: (1995-92) Honda
Replaces: Honda 04314-P08-014, 04314P08014, Mitsubishi 220, A866T38570, A866X22081, MOBILETRON VR-H2009-40, VRH200940, (regulator
stamped: 220)
Unit Nos: Mitsubishi A5T04292
Lester Nos: 13608
WAI Ref. Nos: 1-1831-01MI
Dim: 26mm ID Slip Ring Cover
Note: L-terminal is not an output terminal.
Similar to IM273 except IM273 L-terminal is an output terminal.
Components:
38-8305 Brush
TRI839 Repair Circuit

AS-PL ARE5045
MOBILETRON VR-H2009-40 VRH200940
PARTS-MALL PXPBG-041 PXPBG041
WAIglobal IM839
ACDELCO E636C
AIRTEX / WELLS 1V1131
STANDARD VR546

HONDA
CIVIC 1.5L L4 1992
CIVIC DEL SOL 1.5L L4 1993
