31500-PEO-003, 31500PEO003 SUZUKI Voltage Regulator

31500-PEO-003, 31500PEO003 SUZUKI Voltage Regulator

31500-PEO-003, 31500PEO003 SUZUKI Voltage Regulator

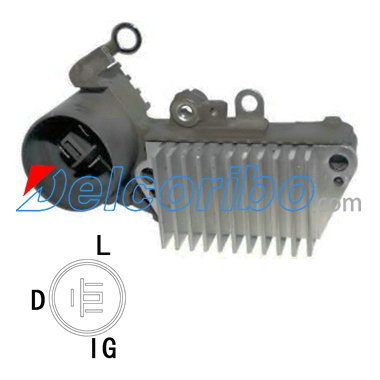

VRT1498 SUZUKI Voltage Regulators
A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
131526
IN219
(Ref# 35-8210)
Regulator
12 Volt, A-Circuit, D-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (1986) Suzuki
Replaces: Honda 31500-PEO-003, 31500PEO003 Nippondenso 126000-0410, 126000-0470, 126000-0411, 126000-0410, 1260000410, 1260000470, 1260000411, 1260000410,Suzuki 32500-82610, 3250082610 MOBILETRON VR-H2005-7A, VRH20057A
Unit Nos: GM 96051973, 96054116, Nippondenso 100211-141, 100211-229, 100211-302, 100211-338, 100211-364, 100211-528, 100211141, 100211229, 100211302, 100211338, 100211364, 100211528 Suzuki 31400-82611, 100211-1410, 100211-1411, 3140082611, 1002111410, 1002111411 Lester Nos: 14684, 14870
WAI Ref. Nos: 1-1228-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.
Not interchangeable with IN221-1 where L-terminal is an output
terminal.
Components:
TRI219 Repair Circuit
ACDELCO D612A
ALANKO 700411
ASHIKA 77-04-402 7704402
ASHUKI 1536-2004 15362004
ERA 215648
HITACHI 132975, 132976
JAPANPARTS RE-402 RE402
JAPKO 77402
LAUBER CQ1010436
MDR MAR-9402 MAR9402
MESSMER 215648
MOBILETRON VR-H2005-7A VRH20057A
PARTS-MALL PXPBF-012 PXPBF012
PowerMax 81115841
STANDARD VR406
WAIglobal IN219
AINDE H-2005-5 H20055
CASCO CRE40104AS
MAGNETI MARELLI 940016082600
SANDO SRE40104.0 SRE401040
Chevrolet Sprint, Ge Sprint
DAIHATSU CHARADE IV (G200, G202) 1993/01 - 2000/09
DAIHATSU APPLAUSE I (A101, A111) 1989/06 - 1997/07
SUZUKI VITARA (ET, TA) 1988/07 - 1998/12
SUZUKI SWIFT II Saloon (AH, AJ) 1989/03 - 2001/05
SUZUKI SJ 413 1984/09 - 1990/08
SUZUKI X-90 (EL) 1995/09 - 1997/12
SUZUKI VITARA Cabrio (ET, TA) 1988/07 - 2002/10
