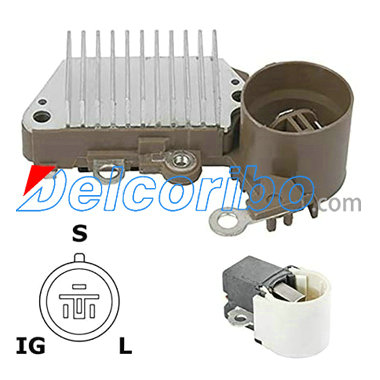

Nippondenso 126000-7040, 126000-7040 Voltage Regulator

A-Circuit
N/C-IG-L
57.5mm Mounting
L Terminal Drives Choke

134700
IN256
(Ref# 35-8237)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.0 Vset, w/ LRC
For: Nippondenso IR/IF Alternators
Used On: Toyota Lift Truck
Replaces: Nippondenso 126000-7040, 126000-7040, 126000-2350, 1260007040, 1260007040, 1260002350, MOBILETRON VR-H2005-27 , VRH200527
Unit Nos: Nippondenso 100211-454, 100211-693, 100211-696, 100211-4540, 100211-6930, 100211454, 100211693, 100211696, 1002114540, 1002116930,
Lester Nos: 12187
WAI Ref. Nos: 1-2132-01ND
Dim: 57.5mm Mtg. Length
Note: L-terminal is an output terminal.

AS-PL ARE6010, ARE6010T
CASCO CRE40121AS
LAUBER CQ1010402
MAGNETI MARELLI 940016081900
PowerMax 1115755
SANDO SRE40121.0 SRE401210
WAIglobal IN256
