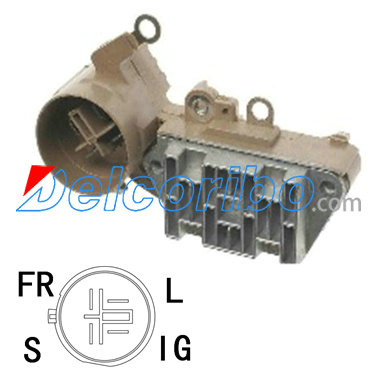

HONDA Voltage Regulator 31150-PD6-004, 31150-PD6-014, 31150-PH3-013

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

132645
IN226
(Ref# 35-8213-3)
Regulator
12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.4 Vset
For: Nippondenso IR/IF Alternators
Used On: (1995-85) Acura, Honda
Replaces: Honda 31150-PD6-004, 31150-PD6-014, 31150-PH3-013, 31150-PR7-A01, 31150PD6004, 31150PD6014, 31150PH3013, 31150PR7A01 Nippondenso 126000-0540, 126000-1170, 126000-1060, 126000-0540, 1260000540, 1260001170, 1260001060, 1260000540 MOBILETRON VR-H2005-9A, NEW ERA IVR-513J, USI 71-30004
Unit Nos: Nippondenso 100211-201, 100211-615, 100211-617, 100211-724, 100211-2010, 100211-2011, 100211-2130, 100211-2140, 100211-2550, 100211-3310, 100211-3311, 100211-6150, 100211-6160, 100211201, 100211615, 100211617, 100211724, 1002112010, 1002112011, 1002112130, 1002112140, 1002112550, 1002113310, 1002113311, 1002116150, 1002116160
Lester Nos: 13386, 13387, 14680
WAI Ref. Nos: 1-1008-01ND, 1-1410-01ND, 1-1411-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI226 Repair Circuit

ACDELCO E657, E629A
ALANKO 700364
AS-PL ARE6006, ARE6024
CASCO CRE40124AS
ERA 215655
HITACHI 132941
LAUBER CQ1010261
MAGNETI MARELLI 940016084500
MESSMER 215655
MOBILETRON VR-H2005-9A VRH20059A
PowerMax 1111506, 81111506
SANDO SRE40124.0 SRE401240
STANDARD VR438
WAIglobal IN226
AIRTEX / WELLS 1V1021
ASHUKI 1536-3004 15363004
PARTS-MALL PXPBF-017 PXPBF017

HONDA ACCORD III (CA) 1985/11 - 1989/12
HONDA LEGEND I Coupe (KA3) 1987/10 - 1991/03
HONDA LEGEND I (HS, KA) 1986/01 - 1991/03
HONDA PRELUDE III (BA) 1986/04 - 1992/01
HONDA ACCORD III Aerodeck (CA) 1985/11 - 1989/12
