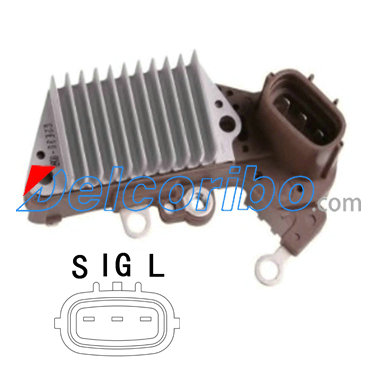

126000-1750, 126000-1930, 126000-1730 for TOYOTA Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke
SOFT START
Active lamp function-with output
FIeld , Lamp Shorted Protection
A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke

135737
IN437
(Ref# 35-8235-1)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.6 Vset, w/ LRC
For: Nippondenso IR/IF Alternators
Used On: (1999-93) Lexus, Toyota
Replaces: Nippondenso 126000-1520*, 126000-1521*, 126000-1730*, 126000-1750, 126000-1930, 126000-1730, 126000-2250*, 1260001520*, 1260001521*, 1260001730*, 1260001750, 1260001930, 1260001730, 1260002250*, Toyota 27700-11070, 27700-11080, 27700-66040*, 27700-75020*, 2770011070, 2770011080, 2770066040*, 2770075020 MOBILETRON VR-H2005-30A, VRH200530A NEW ERA IVR-529
Unit Nos: Nippondenso 101211-020, 101211-034, 101211-035, 101211-043, 101211-045, 101211-052, 101211-053, 101211-059, 101211-074, 101211-412, 101211-515, 101211-516, 101211-527, 102211-505, 101211-0120, 101211-0190, 101211-0191, 101211-0340, 101211-0341, 101211-0342, 101211-0430, 101211-0431, 101211-0432, 101211020, 101211034, 101211035, 101211043, 101211045, 101211052, 101211053, 101211059, 101211074, 101211412, 101211515, 101211516, 101211527, 102211505, 1012110120, 1012110190, 1012110191, 1012110340, 1012110341, 1012110342, 1012110430, 1012110431, 1012110432
Lester Nos: 13409, 13486, 13487, 13489, 13497, 13512, 13536, 13659, 13673
WAI Ref. Nos: 1-1839-01ND, 1-1865-01ND, 1-1885-01ND, 1-1930-01ND, 1-1935-01ND, 1-1936-01ND, 1-1977-01ND, 1-2051-01ND, 1-2081-01ND, 1-2183-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.
*Nippondenso 126000-1520, -1521, -1730, -2250 wo/ LRC
Components:
TRI220 Repair Circuit

ACDELCO E617A
AIRTEX / WELLS 1V1288
AS-PL ARE6013
CASCO CRE40111AS
ERA 215672
LAUBER CQ1010455
MAGNETI MARELLI 940016085100
MESSMER 215672
MOBILETRON VR-H2005-30A VRH200530A, VR-H2005-45A VRH200545A
PARTS-MALL PXPBF-003 PXPBF003
PowerMax 1113353, 81113353
SANDO SRE40111.0 SRE401110
WAIglobal IN437, IN437HD

TOYOTA COROLLA Compact (_E10_) 1992/05 - 1999/11
TOYOTA COROLLA Wagon (_E10_) 1992/05 - 1997/04
TOYOTA STARLET (_P8_) 1989/12 - 1996/03
TOYOTA 4 RUNNER (RN10_, VZN13_, VZN10_, RN13_) 1987/08 - 1996/03
TOYOTA HIACE IV Bus (LH1_) 1995/08 - /
TOYOTA PASEO Coupe (EL54) 1995/08 - 1999/12
TOYOTA COROLLA (_E11_) 1997/04 - 2002/06
TOYOTA COROLLA Liftback (_E11_) 1997/04 - 2002/01
TOYOTA HIACE III Box (YH7_, LH6_, LH7_, LH5_, YH5_, YH6_) 1989/08 - 2004/08
TOYOTA COROLLA (_E10_) 1991/06 - 1999/11
TOYOTA PASEO Convertible (EL54) 1996/10 - 1998/01
TOYOTA STARLET (EP91) 1996/04 - 1999/10
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 1995/08 - /
