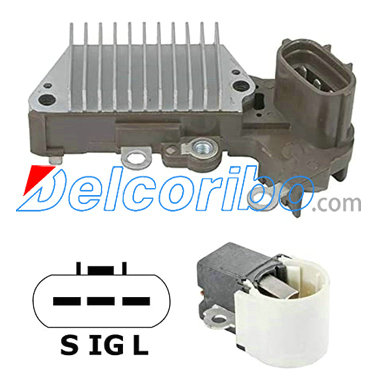

Toyota 27700-50020, 27700-50030, 27700-62020 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

139584
IN453
(Ref# 35-8240)
Regulator
12 Volt, A-Circuit, S-IG-L Terminals, 14.4 Vset, wo/ LRC
For: Nippondenso IR/IF Alternators
Used On: (2004-95) Lexus, Toyota
Replaces: Nippondenso 126000-1960*, 126000-2050, 126000-2250, 126000-2230, 126000-2200, 126000-1960, 1260001960*, 1260002050, 1260002250, 1260002230, 1260002200, 1260001960 Toyota 27700-50020, 27700-50030, 27700-62020, 2770050020, 2770050030, 2770062020 MOBILETRON VR-H2005-46A, VRH200546A
Unit Nos: Nippondenso 101211-073, 101211-413, 101211-730, 101211-776, 101211-915, 101211-959, 101211-963, 102211-061, 102211-504, 100211-5220, 100211-5230, 101211073, 101211413, 101211730, 101211776, 101211915, 101211959, 101211963, 102211061, 102211504, 1002115220, 1002115230
Lester Nos: 13669, 13670, 13671, 13715, 13794, 13859, 13885
WAI Ref. Nos: 1-2052-01ND, 1-2053-01ND, 1-2146-01ND, 1-2182-01ND, 1-2230-01ND, 1-2238-01ND, 1-2276-01ND, 1-2366-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.
*Nippondenso 126000-1960 14.6 Vset.

AS-PL ARE6033, ARE6085
LAUBER CQ1010168
MAGNETI MARELLI 940016085400
MOBILETRON VR-H2005-30A VRH200530A
PARTS-MALL PXPBF-023 PXPBF023
WAIglobal IN453
CASCO CRE40131AS
PowerMax 81115961
SANDO SRE40131.0 SRE401310

TOYOTA LAND CRUISER 80 (_J8_) 1990/01 - 1998/02
TOYOTA 4 RUNNER (RN10_, VZN13_, VZN10_, RN13_) 1987/08 - 1996/03
TOYOTA HILUX II Pickup (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) 1983/08 - 2005/07
TOYOTA LAND CRUISER 90 (_J9_) 1995/04 - /
TOYOTA LITEACE Bus (_R2_LG) 1992/01 - 1998/01
TOYOTA LAND CRUISER (LJ12_, KDJ12_, KZJ12_, GRJ12_, TRJ12_) 2002/09 - /
TOYOTA 4 RUNNER (KZN18_, VZN18_, RZN18_) 1995/11 - 2002/11
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2001/08 - /
TOYOTA HILUX II Platform/Chassis (LN6_, LN5_, YN6_, YN5_, VZN1_, RZ 1983/08 - 2005/08
TOYOTA COASTER Bus (TRB5_, XZB5_, RZB4_, HZB5_, BZB5_, BB4_) 1993/02 - /
