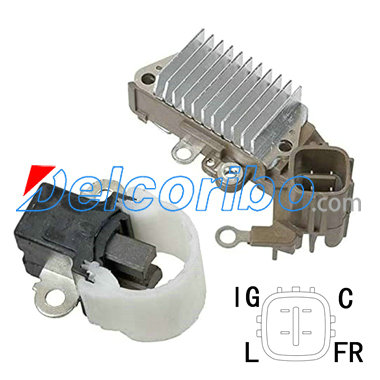

Honda 31150-P2T-003, 31150-PEA-A01, 31150-PV4-003 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

234557
IN445
(Ref# 35-8241)
Regulator
12 Volt, A-Circuit, C-FR-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (2003-96) Acura, Honda, Isuzu
Replaces: Honda 31150-P2T-003, 31150-PEA-A01, 31150-PV4-003, 31150P2T003, 31150PEAA01, 31150PV4003 Nippondenso 126000-2090, 126000-2610, 126000-2470, 126000-2170, 126000-2160, 126000-2090, 126000-3030, 940038097, 1260002090, 1260002610, 1260002470, 1260002170, 1260002160, 1260002090, 1260003030, 940038097 MOBILETRON VR-H2005-40, VRH200540 NEW ERA IVR-535
Unit Nos: Nippondenso 101211-785, 101211-925, 101211-931, 101211-933, 101211-981, 101211-986, 101211-997, 101211-999, 102211-068, 102211-069, 102211-101, 102211-102, 102211-126, 102211-127, 101211-4060, 101211-4070, 101211-7270, 101211-9250, 101211-9310, 101211-9330, 101211-9760, 101211-9810, 101211-9860, 101211785, 101211925, 101211931, 101211933, 101211981, 101211986, 101211997, 101211999, 102211068, 102211069, 102211101, 102211102, 102211126, 102211127, 1012114060, 1012114070, 1012117270, 1012119250, 1012119310, 1012119330, 1012119760, 1012119810, 1012119860
Lester Nos: 13674, 13677, 13737, 13743, 13767, 13769, 13776, 13835, 13836
WAI Ref. Nos: 1-2022-01ND, 1-2055-01ND, 1-2122-01ND, 1-2142-01ND, 1-2189-01ND, 1-2194-01ND, 1-2239-01ND, 1-2262-01ND, 1-2374-01ND, 1-2375-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.

ALANKO 700462
AS-PL ARE6015, ARE6072, ARE6073
CASCO CRE40112AS
ERA 215679
LAUBER CQ1010598
MESSMER 215679
MOBILETRON VR-H2005-40 VRH200540
PowerMax 1114727
SANDO SRE40112.0 SRE401120
WAIglobal IN445
ACDELCO E638A
AIRTEX / WELLS 1V1009
PARTS-MALL PXPBF-018 PXPBF018
STANDARD VR570
STELLOX 06-71721-SX 0671721SX

HONDA CIVIC VI Hatchback (EJ, EK) 1995/10 - 2001/02
HONDA CIVIC VI Saloon (EJ, EK) 1995/06 - 2001/03
HONDA CR-V I (RD) 1995/10 - 2002/02
