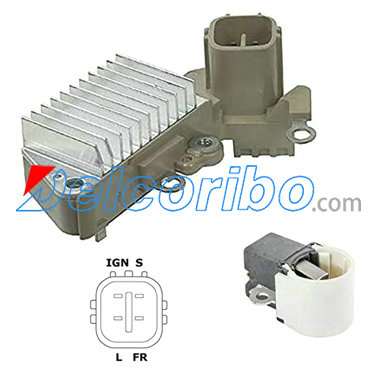

HONDA 31150-P5A-003, 31150P5A003, 31150-P5A-0030 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting
L Terminal Drives Choke

236768
IN455
(Ref# 35-8243)
Regulator
12 Volt, A-Circuit, S-FR-IG-L Terminals, 14.5 Vset
For: Nippondenso IR/IF Alternators
Used On: (2002-96) Acura
Replaces: HONDA: 31150-P5A-003, 31150P5A003 , 31150-P5A-0030 , 31150P5A0030 , 31150-P5G-003 , 31150P5G003 , 31150-P5G-0030 , 31150P5G0030, Nippondenso 126000-2190, 27700-50040, 126000-3690, 126000-2450, 126000-2190, 1260002190, 2770050040, 1260003690, 1260002450, 1260002190 MOBILETRON VR-H2005-64A, VRH200564A
Unit Nos: Honda 31100-P5A-003, 31100-P5G-013, 31100P5A003, 31100P5G013 Nippondenso 101211-723, 101211-727, 101211-7230, 102211-2310, 102211-2810, 102211-5600, 102211-5670, 104210-8020, 104210-8220, 104210-8240, 104210-8241, 101211723, 101211727, 1012117230, 1022112310, 1022112810, 1022115600, 1022115670, 1042108020, 1042108220, 1042108240, 1042108241
Lester Nos: 13675, 13738
WAI Ref. Nos: 1-2054-01ND, 1-2121-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is an output terminal.
Components:
TRI226 Repair Circuit

AS-PL ARE6027
CASCO CRE40112AS
ERA 215685
LAUBER CQ1010486
MESSMER 215685
MOBILETRON VR-H2005-64A VRH200564A
PowerMax 1112485, 81112485
SANDO SRE40112.0 SRE401120
WAIglobal IN455
ACDELCO F655
AIRTEX / WELLS 1V1017
PARTS-MALL PXPBF-019 PXPBF019
STANDARD VR573

HONDA LEGEND III (KA9) 1996/02 - /
TOYOTA HILUX II Pickup (RN6_, RN5_, LN6_, YN6_, YN5_, LN5_) 1983/08 - 2005/07
TOYOTA HIACE IV Bus (LH1_) 1995/08 - /
TOYOTA LAND CRUISER 90 (_J9_) 1995/04 - /
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 1995/08 - /
TOYOTA LAND CRUISER (LJ12_, KDJ12_, KZJ12_, GRJ12_, TRJ12_) 2002/09 - /
TOYOTA HILUX III Pickup (TGN1_, GGN2_, LAN_, GGN1_, KUN2_, KUN1_) 2004/11 - /
