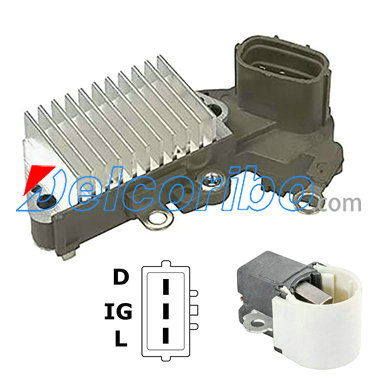

1260003530, 1260003060, 1260002680 Voltage Regulator

A-Circuit
Voitage Set Point 14.5V
63.5mm Mounting

139268
IN452
Regulator
12 Volt, A-Circuit, D-IG-L Terminals, 14.8 Vset, w/ LRC
For: Nippondenso IR/IF Alternators
Used On: (2000-95) Honda, Suzuki
Replaces: Nippondenso 126000-1970, 126000-3530, 126000-3060, 126000-2680, 126000-2500, 126000-1971, 126000-1970, 126000-1920, 126000-2470*, 1260001970, 1260003530, 1260003060, 1260002680, 1260002500, 1260001971, 1260001970, 1260001920, 1260002470*, 1260002740 , MOBILETRON VR-H2005-48A, Suzuki 32500-60G10, 32500-77E10, 3250060G10, 3250077E10
Unit Nos: Honda 31100-P8F-A01, 31100P8FA01 Nippondenso 101211-055, 101211-072, 101211-520, 101211-785, 102211-502, 102211-507, 102211-528, 101211055, 101211072, 101211520, 101211785, 102211502, 102211507, 102211528 Suzuki 31400-60G10, 31400-60G11, 31400-60G12, 31400-60G13, 31400-77E20, 31400-77E21, 31400-77E22, 100213-2272, 100213-2320, 100213-2530, 100213-2540, 100213-2630, 100213-2790, 101211-0550, 101211-0551, 101211-0722, 3140060G10, 3140060G11, 3140060G12, 3140060G13, 3140077E20, 3140077E21, 3140077E22, 1002132272, 1002132320, 1002132530, 1002132540, 1002132630, 1002132790, 1012110550, 1012110551, 1012110722
Lester Nos: 13679, 13680, 13753, 13769
WAI Ref. Nos: 1-2148-01ND, 1-2148-02ND, 1-2157-01ND, 1-2239-01ND
Dim: 63.5mm Mtg. Length
Note: L-terminal is not an output terminal.
*Nippondenso 126000-2470, 1260002470 wo/ LRC

AS-PL ARE6057
ERA 215683
LAUBER CQ1010090
MESSMER 215683
MOBILETRON VR-H2005-48A VRH200548A
PowerMax 1110563, 81110563
AIRTEX / WELLS 1V1277
PARTS-MALL PXPBF-042 PXPBF042
WAIglobal IN452

SUZUKI BALENO Hatchback (EG) 1995/03 - 2002/05
SUZUKI BALENO (EG) 1995/03 - 2002/05
SUZUKI BALENO Estate (EG) 1996/08 - 2002/05
SUZUKI WAGON R+ (EM) 1997/10 - 2000/05
SUZUKI WAGON R+ (MM) 2000/05 - /
SUZUKI ALTO (HA24) 2004/09 - /
