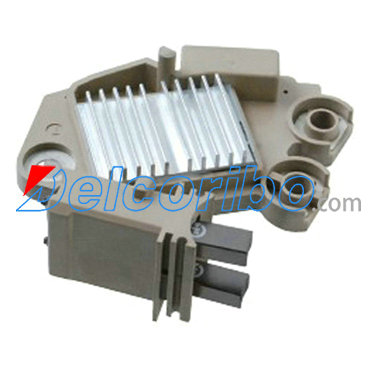

Valeo 2541940, 2542292C, 2542332, 2542529 for AUDI Voltage Regulator

B-Circuit
Voltage Set Point 14.5V
Lamp activeted , With output
Soft start
Shorted lamp & field protection
L-FR

CARGO 231103
TRANSPO M521
Regulator
12 Volt, B-Circuit, L-FR Terminals, 14.4 Vset
Valeo IR/IF Alternators
Notes - Active lamp function - with output., With DF Transistor.
Replaces - Valeo 2541940, 2542292C, 2542332, 2542529, 2542595, 2547814C, 593368, 593371, 593480, 593940, 593941, YM16, YM1626F, YM1638P, YM1661VF4, YM1672VFP1, YM1687VFP1, YM2660VP2F, YR1616VFP1, MOBILETRON VR-PR2292

AS-PL ARE3010
SANDO SRE15131.1
WAIglobal M521 , M547
PowerMax 1111510 , 81111510
MESSMER 215845
METZGER 2390047
ERA 215845
CASCO CRE15131GS
LAUBER CQ1010079
HITACHI 2500731 , 130731

AUDI A4 (8D2, B5) 1994/11 - 2001/09
AUDI A6 (4B2, C5) 1997/01 - 2005/01
AUDI A6 Avant (4B5, C5) 1997/11 - 2005/01
AUDI A4 Avant (8D5, B5) 1994/11 - 2001/09
AUDI A2 (8Z0) 2000/02 - 2005/08
AUDI A4 (8E2, B6) 2000/11 - 2004/12
AUDI A4 Avant (8E5, B6) 2001/04 - 2004/12
AUDI A3 (8P1) 2003/05 - 2012/08
AUDI A3 Sportback (8PA) 2004/09 - 2013/03
AUDI A4 (8EC, B7) 2004/11 - 2008/06
AUDI A4 Avant (8ED, B7) 2004/11 - 2008/06
SEAT ALHAMBRA (7V8, 7V9) 1996/04 - 2010/03
SEAT AROSA (6H) 1997/05 - 2004/06
SEAT CORDOBA (6K2) 1999/06 - 2002/10
SEAT IBIZA III (6K1) 1999/08 - 2002/02
SEAT IBIZA IV (6L1) 2002/02 - 2009/11
SEAT CORDOBA (6L2) 2002/09 - 2009/11
SEAT LEON (1P1) 2005/05 - 2012/12
SKODA OCTAVIA Combi (1U5) 1998/07 - 2010/12
SKODA FABIA (6Y2) 1999/08 - 2008/03
SKODA FABIA Combi (6Y5) 2000/04 - 2007/12
SKODA FABIA Saloon (6Y3) 1999/10 - 2007/12
SKODA SUPERB (3U4) 2001/12 - 2008/03
SKODA OCTAVIA (1Z3) 2004/02 - 2013/06
SKODA ROOMSTER (5J) 2006/03 - /
SKODA FABIA 2006/12 - 2014/12
VW POLO CLASSIC (6KV2) 1995/11 - 2006/07
VW PASSAT (3B2) 1996/08 - 2001/12
VW PASSAT Variant (3B5) 1997/05 - 2001/12
VW POLO Variant (6KV5) 1997/04 - 2001/09
VW GOLF IV (1J1) 1997/08 - 2005/06
VW GOLF IV Variant (1J5) 1999/05 - 2006/06
VW POLO (6N2) 1999/10 - 2001/10
VW PASSAT (3B3) 2000/11 - 2005/05
VW PASSAT Variant (3B6) 2000/10 - 2005/08
VW POLO (9N_) 2001/10 - 2012/01
VW GOLF V (1K1) 2003/10 - 2009/02
VW POLO Saloon (9A4) 2002/09 - /
VW CADDY III Box (2KA, 2KH, 2CA, 2CH) 2004/03 - /
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 2004/03 - /
VW GOLF PLUS (5M1, 521) 2005/01 - 2013/12
VW PASSAT (3C2) 2005/03 - 2010/11
VW FOX (5Z1, 5Z3) 2003/10 - /
VW PASSAT Variant (3C5) 2005/08 - 2011/10
VW TIGUAN (5N_) 2007/09 - /
VW POLO (6R, 6C) 2009/06 - /
