American Motors 3171141, 3178581, 3208345, 8126225 Voltage Regulator
VRT1706 Voltage Regulators
M5-130
Regulator
12 Volt, B-Circuit, 15.2 Vset
For: Motorola / Prestolite 12N, A/8AL, HA, MA Series Alternators
w/ Isolation Diode
Replaces: American Motors 3171141, 3178581, 3208345, 8126225, Ford GR387, Motorola 5-1, 5-10, 5-102, 5-130, 5-135, 5-14, 5-143, 5-15, 5-16, 5-18, 5-21, 5-28, 5-30, 5-35, 5-42, 5-45, 5-5, 5-59, 5-6, 5-62, 5-7, 5-72, 5-8, 8RB2001, 8RC2020, 8RD2014, 8RH2004A, 8RH2004H, 8RV2008, F-1, P-1, R2-1, R2-2, R2-3, R2CC1, R2CM1, R2ON2, SR-1, TVR12-1, TVR12-11, TVR12-35, TVR12CC1, TVR12NAM18, TVR12NAM6, Prestolite 105-1, 105-10, 105-130, 105-135, 105-15, 105-16, 105-18, 105-28, 105-30, 105-42, 105-45, 105-49, 105-59, 105-62, 105-72, 8-274, 8-292, 8-354, VSC-6234D, VSC-6234G, VSH-6201G

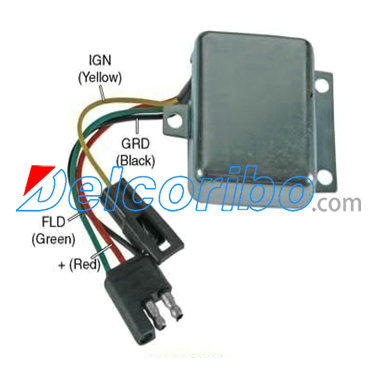

Terminal ID: Plug Type A-1, Wiring Code 3
Red Isolation Diode (+), Black Ground, Green Field, Yellow Ignition.
Note: For adjustable voltage use M5-130A.
Regulator
12 Volt, B-Circuit, 15.2 Vset
For: Motorola / Prestolite 12N, A/8AL, HA, MA Series Alternators
w/ Isolation Diode
Replaces: American Motors 3171141, 3178581, 3208345, 8126225, Ford GR387, Motorola 5-1, 5-10, 5-102, 5-130, 5-135, 5-14, 5-143, 5-15, 5-16, 5-18, 5-21, 5-28, 5-30, 5-35, 5-42, 5-45, 5-5, 5-59, 5-6, 5-62, 5-7, 5-72, 5-8, 8RB2001, 8RC2020, 8RD2014, 8RH2004A, 8RH2004H, 8RV2008, F-1, P-1, R2-1, R2-2, R2-3, R2CC1, R2CM1, R2ON2, SR-1, TVR12-1, TVR12-11, TVR12-35, TVR12CC1, TVR12NAM18, TVR12NAM6, Prestolite 105-1, 105-10, 105-130, 105-135, 105-15, 105-16, 105-18, 105-28, 105-30, 105-42, 105-45, 105-49, 105-59, 105-62, 105-72, 8-274, 8-292, 8-354, VSC-6234D, VSC-6234G, VSH-6201G
Terminal ID: Plug Type A-1, Wiring Code 3
Red Isolation Diode (+), Black Ground, Green Field, Yellow Ignition.
Note: For adjustable voltage use M5-130A.
ALANKO 700173
BERU GER045
WAIglobal M5-130 M5130, M5-130A M5130A
BERU GER045
WAIglobal M5-130 M5130, M5-130A M5130A
