Motorola Prestolite 8RF2014C, R3JD1B, R3JD18A Voltage Regulator

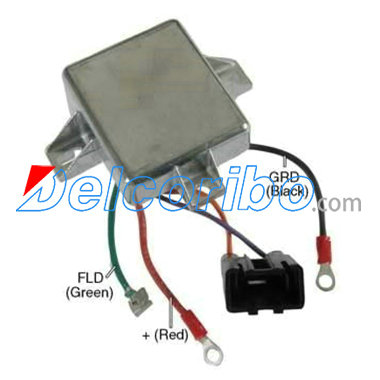

VRT1717 Voltage Regulators
B-Circuit
RED--ISOLATION DIODE(+)
BLACK--GROUND
GREEN--FIELD
L-IG
Voltage Set Point 14.5V
RED--ISOLATION DIODE(+)
BLACK--GROUND
GREEN--FIELD
L-IG
Voltage Set Point 14.5V
131911
M5-153A
(Ref# 35-408)
Regulator
12 Volt, B-Circuit, 15.0 Vset
For: Motorola / Prestolite RA/8AR Series Alternators
w/ Isolation Diode
Replaces: John Deere AR78298, Motorola / Prestolite 8RF2014C, R3JD1B, R3JD18A, 8AR2019K, 105-92, 105-26, 105-153, 8RF2023C, 105-256, 10592, 10526, 105153, 8RF2023C, 105256
Unit Nos: Motorola / Prestolite 8AR2006, 8AR2012K, 8AR2013F, 8AR2019K, 8AR2025K, 8AR2044F, 8AR2045K, 8AR2048F, 8AR2049K, 8AR2050F, 8AR2051K, 8AR2052F, 8AR2076K, RA12N35JD1, RA12N5105-JD1, RA12N5105-JD5, RA12N5105-JD6, RA12N5105-JD7, RA12N5105-JD8, RA12N55-JD6, RA12NJD453, RA12NJD604, 110-38, 110-39, 110-194, 110-240, 110-241, 110-325, Lester Nos: 7356, 7357, 7364, 7369
Terminal ID: Red D+, Black D-, Green DF
Features:
Adjustable voltage
M5-153A
(Ref# 35-408)
Regulator
12 Volt, B-Circuit, 15.0 Vset
For: Motorola / Prestolite RA/8AR Series Alternators
w/ Isolation Diode
Replaces: John Deere AR78298, Motorola / Prestolite 8RF2014C, R3JD1B, R3JD18A, 8AR2019K, 105-92, 105-26, 105-153, 8RF2023C, 105-256, 10592, 10526, 105153, 8RF2023C, 105256
Unit Nos: Motorola / Prestolite 8AR2006, 8AR2012K, 8AR2013F, 8AR2019K, 8AR2025K, 8AR2044F, 8AR2045K, 8AR2048F, 8AR2049K, 8AR2050F, 8AR2051K, 8AR2052F, 8AR2076K, RA12N35JD1, RA12N5105-JD1, RA12N5105-JD5, RA12N5105-JD6, RA12N5105-JD7, RA12N5105-JD8, RA12N55-JD6, RA12NJD453, RA12NJD604, 110-38, 110-39, 110-194, 110-240, 110-241, 110-325, Lester Nos: 7356, 7357, 7364, 7369
Terminal ID: Red D+, Black D-, Green DF
Features:
Adjustable voltage
WAIglobal M5-153A M5153A
