HYUNDAI 311102V500, 311102V501, 311103X550, 31110A7500, 31110A7600, 31120A7500 Electric Fuel Pump Assembly

HYUNDAI 311102V500, 311102V501, 311103X550, 31110A7500, 31110A7600, 31120A7500 Electric Fuel Pump Assembly

HYUNDAI 311102V500, 311102V501, 311103X550, 31110A7500, 31110A7600, 31120A7500 Electric Fuel Pump Assembly

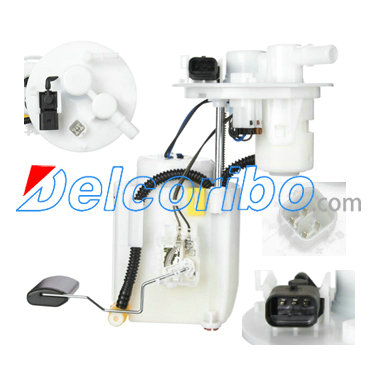

FPM1247 HYUNDAI Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 9.64
Max Pressure Range (Psi): 75.4
Max Free Flow (Gph): 58.5
Resistance Empty (Ohms): 200
Resistance Full (Ohms): 8
Rheostat Range (Ohms): 200-8
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 49.2
Min Pressure Range (Psi): 69.6
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Square
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 311102V500, 311102V501, 311103X550, 31110A7500, 31110A7600, 31120A7500,
SPECTRA PREMIUM SP3049M
AIRTEX E9110M
CARTER P77060M
DELPHI FG1672
HYUNDAI ELANTRA 2014-2017
HYUNDAI VELOSTER 2012-2015
KIA FORTE 2014-2016
KIA FORTE5 2014-2016
