HYUNDAI 311102M500, 31110-2M500, 310902M000, 31090-2M000 Electric Fuel Pump Assembly

HYUNDAI 311102M500, 31110-2M500, 310902M000, 31090-2M000 Electric Fuel Pump Assembly

HYUNDAI 311102M500, 31110-2M500, 310902M000, 31090-2M000 Electric Fuel Pump Assembly

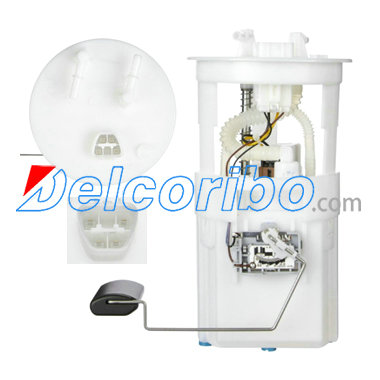

FPM1259 HYUNDAI Electric Fuel Pump Assembly
Description: Fuel Pump Module Assembly
Gaskets Included: Yes
Height (in): 10.0
Max Pressure Range (Psi): 57
Max Free Flow (Gph): 70
Resistance Empty (Ohms): 90
Resistance Full (Ohms): 4
Rheostat Range (Ohms): 90-4
Outlet Quantity: 1
Outlet Type: Quick Connect
Outlet Diameter (IN): 5/16
Compatible Fuels: Gas
Wiring Harness Included: No
Hardware Included: Yes
Min Free Flow Rate (Gph): 61
Min Pressure Range (Psi): 54
Strainer Included: Yes
Pin Count: 4
Pin Shape: Flat
Connector Shape: Trapeze
Connector Gender: Male
Inline Pump: No
In Tank: Yes
Negative Ground: Yes
Pump Type: Turbine
Volts: 12 vDC
HYUNDAI 311102M500, 310902M000,
SPECTRA PREMIUM SP3066M
DELPHI FG1650
AIRTEX E9061M
HYUNDAI GENESIS COUPE 2010-2012
